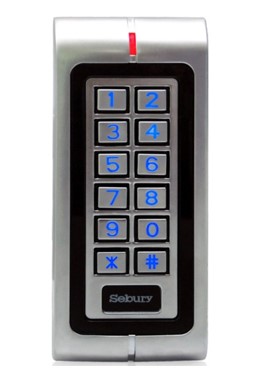

Product Description:

Metal structure, Anti-vandal, More Secure, Waterproof Design.

Backlight keypad.

Convenient for operating at night.

Large Capacity: 2,000 users.

Support 3 Modes Access: Card, PIN, Card+PIN.

Card Type: 125KHz EM, PIN length: 4～8 digits.

Operating Voltage: 12-18V AC/12-24V DC.

Very low power consumption ( ≤35mA), long service life and stable performance.

High Speed Search: filled with 2,000 users, the search time < 0.1 seconds.

Manage cards: the manage cards can add/delete the users directly, very convenient

Wiegand 26 input & output, can work as Wiegand reader/Controller.

Protective properties: IP65 fully-potted. with anti-demolition, alarm function, anti-static —interference 15KV.

Certificate: CE

Specifications:

Operating Voltage: 12～18V AC/12～24V DC

Adjustable Door Relay Time: 0-99s

Static Current: ≤35mA

Wiegand Interface: Wiegand 26

Card Read Rang: 3-6cm

Reader Induction Time: ≤0.1s

Operating Temperature: -40℃～60℃

Operating Humidity: 0-95%

Lock Output Load: ≤1A

Alarm Output Load: ≤3A

Antistatic: 15KV

Environment: Conforms to IP65

Wiring Length: 90-100cm

Dimensions: L 135mm×W58mm×H 26mm
